Securing a gas bottle on your welding trolley is not just about convenience — it’s a critical safety requirement. An unsecured cylinder can tip over, damage equipment, or even cause serious injury.
Whether you’re using a TIG, MIG, or plasma setup, this guide will show you exactly how to secure a gas bottle on a welding trolley safely and correctly.
Contents

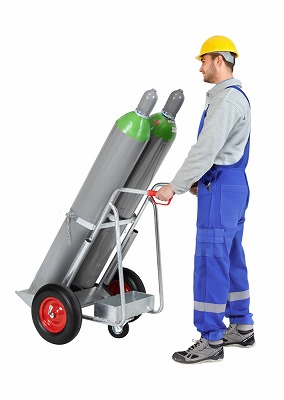

⚠️ Why Securing a Gas Bottle Is Important
Gas cylinders (like argon or CO₂) are:
- Heavy and pressurised
- Dangerous if dropped
- Capable of causing serious injury
👉 In the UK, safe handling of gas cylinders is strongly recommended under workplace safety guidance.
🔧 Step-by-Step: How to Secure a Gas Bottle on a Welding Trolley

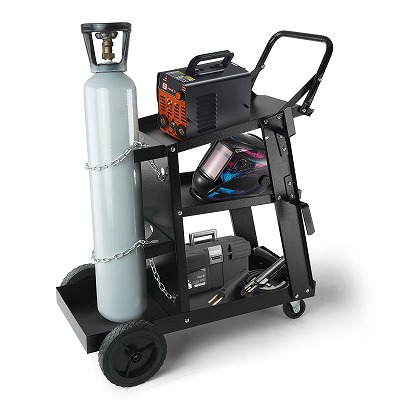

🔹 Step 1: Use the Correct Welding Trolley
Choose a trolley that includes:
- Cylinder holder or rear platform
- Chain or strap system
- Stable base
👉 Not all trolleys are designed for gas bottles.
🔹 Step 2: Position the Cylinder Upright
✔ Correct Position:
- Always upright
- Base resting flat on trolley
❌ Avoid:
- Laying cylinder sideways
- Tilting or leaning
👉 Gas cylinders must always be stored upright.

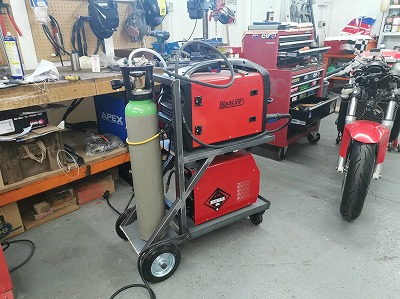

🔹 Step 3: Secure with Chain or Strap
Best Methods:
🔗 Chain (Most Common)
- Wrap chain around cylinder
- Attach to trolley frame
- Tighten securely
🪢 Strap (Alternative)
- Use heavy-duty ratchet strap
- Tighten firmly
👉 The cylinder should not move at all.
🔹 Step 4: Secure at the Correct Height
✔ Ideal Position:
- Around the upper third of the cylinder
Why?
- Prevents tipping
- Improves stability
👉 Avoid securing too low — it won’t stop movement.
🔹 Step 5: Check Stability
Before use:
- Shake trolley gently
- Ensure cylinder does not wobble
- Check chain/strap tightness
👉 Always double-check before welding.

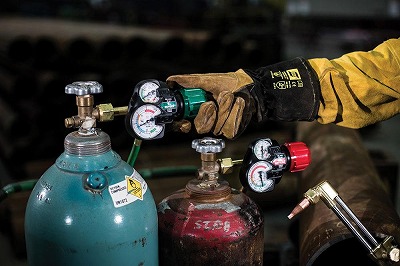

🔹 Step 6: Secure Regulator & Hose
- Attach regulator properly
- Avoid loose hoses
- Use cable hooks if available
👉 Prevents damage and tripping hazards.
⚙️ Best Practices for UK Workshops
🔹 Always Keep Cylinder Upright
Even during transport.
🔹 Use Trolleys with Built-in Safety Features
- Chain holders
- Cylinder brackets
🔹 Avoid Overloading the Cart
Heavy loads affect stability.
🔹 Store in Dry Area
Important for UK climate conditions.
❌ Common Mistakes to Avoid
❌ Not securing the cylinder
✔ Always use chain or strap
❌ Using weak straps
✔ Use heavy-duty materials
❌ Securing too loosely
✔ Tighten properly
❌ Laying cylinder horizontally
✔ Always upright
❌ Ignoring trolley stability
✔ Check wheels and balance
🧰 Recommended Setup Example
TIG Welding Setup (UK Garage):
- 3-tier welding trolley
- Steel frame
- Rear cylinder holder
- Chain secured at top
- Argon cylinder upright
👉 This setup is safe, stable, and practical.
🧠 Pro Tips for Extra Safety
- Use double chains for large cylinders
- Add rubber padding to prevent slipping
- Lock trolley wheels when welding
- Keep cylinder away from heat sources
- Use protective caps when not in use
🛡️ Safety Guidelines
While home users are not always regulated, following general UK safety practices is highly recommended:
- Secure cylinders at all times
- Avoid dropping or impacting cylinder
- Keep away from flammable materials
- Ensure proper ventilation
👉 Safety should always come first.
❓ FAQs
How do you secure a gas bottle on a welding trolley?
Use a chain or strap around the upper section of the cylinder and attach it tightly to the trolley.
Can I lay a gas cylinder on its side?
No — always keep it upright.
Is one chain enough?
Yes for small cylinders, but large ones may need two.
Do all welding trolleys support gas bottles?
No — choose one designed for cylinder storage.
🏁 Final Thoughts
Knowing how to secure a gas bottle on a welding trolley is essential for safe and efficient welding.
👉 Always remember:
- Keep cylinder upright
- Use strong chains or straps
- Secure tightly at the correct height
- Check stability before use
A properly secured gas bottle not only protects your equipment — it protects you.
