Tungsten contamination is one of the most common problems in TIG welding — especially for beginners. If your arc suddenly becomes unstable, your weld turns dirty, or your tungsten tip looks black or melted, contamination is likely the cause.
The good news? Fixing tungsten contamination is simple once you understand what’s happening.
In this complete UK guide, you’ll learn:
- What tungsten contamination is
- The main causes
- Step-by-step fixes
- How to prevent it completely
Contents
🔧 What Is Tungsten Contamination?
Tungsten contamination happens when the tungsten electrode becomes polluted with foreign material, such as:
- Molten metal
- Dirt or oil
- Oxidation from poor gas coverage
Because TIG welding relies on a clean, non-consumable electrode, contamination directly affects arc quality.
⚠️ Signs of Tungsten Contamination
If you notice any of these, your tungsten is likely contaminated:
- Arc becomes unstable or erratic
- Difficulty starting the arc
- Blackened or discoloured tip
- Poor weld appearance
- Increased spatter (unusual in TIG)
👉 These are early warning signs — don’t ignore them.
🔍 Main Causes of Tungsten Contamination

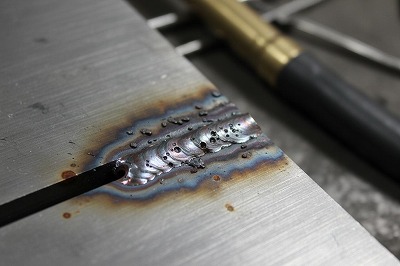

1. Touching the Weld Pool
❌ Cause:
The most common mistake — especially for beginners.
If the tungsten touches the molten weld pool, it instantly becomes contaminated.
✅ Fix:
- Stop welding immediately
- Remove and re-grind tungsten
- Maintain proper arc length (2–3mm)
2. Poor Shielding Gas Coverage
❌ Cause:
Without proper argon shielding, oxygen contaminates the tungsten.
✅ Fix:
- Set gas flow to 6–10 L/min
- Check for leaks in hoses
- Clean gas nozzle
- Avoid drafts or wind

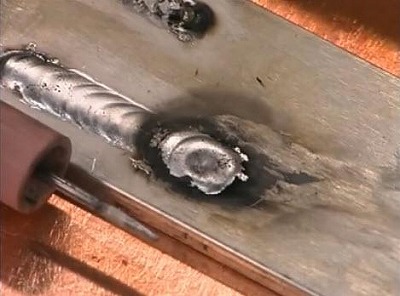

3. Dirty Base Metal
❌ Cause:
Oil, rust, or paint contaminates both weld and tungsten.
✅ Fix:
- Clean metal using:
- Wire brush
- Grinder
- Acetone
👉 Always prep your material before welding.

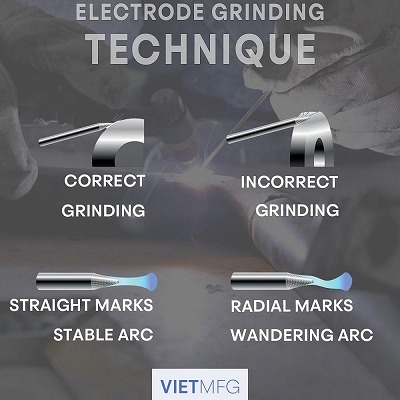

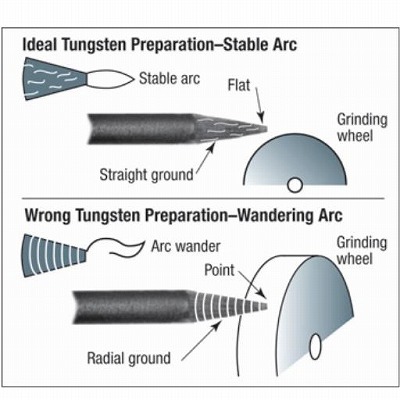

4. Incorrect Tungsten Preparation
❌ Cause:
Improper grinding leads to poor arc behaviour and contamination risk.
✅ Fix:
- Grind tungsten to a sharp point
- Grind lengthwise (not circular)
- Use a dedicated grinding wheel
5. Wrong Amperage Settings
❌ Cause:
Too much heat can damage the tungsten tip.
✅ Fix:
- Match amperage to tungsten size
- Reduce current if tip overheats
🛠️ Step-by-Step: How to Fix Contaminated Tungsten
Step 1: Stop Welding Immediately
Continuing will worsen contamination.
Step 2: Remove Tungsten
Take it out of the torch.
Step 3: Inspect the Tip
Look for:
- Black deposits
- Melted or rounded tip
Step 4: Re-Grind Tungsten
- Use a grinding wheel
- Grind to a sharp point
- Maintain consistent angle
Step 5: Reinstall and Test
- Reinsert tungsten
- Set correct arc length
- Resume welding
👉 This process takes less than 2 minutes but makes a huge difference.
⚙️ Best Tungsten Setup for Beginners
- Size: 1.6mm or 2.4mm
- Type: Thoriated or lanthanated
- Tip: Sharp point (DC TIG)
👉 Perfect for most UK home users.
❌ Common Mistakes to Avoid
❌ Continuing to weld with contaminated tungsten
✔ Always re-grind immediately
❌ Grinding incorrectly
✔ Always grind lengthwise
❌ Ignoring gas issues
✔ Check flow and leaks
❌ Poor torch control
✔ Practise steady hand movement
🧠 Pro Tips for UK Welders
- Keep spare tungsten electrodes ready
- Use a dedicated tungsten grinder if possible
- Store electrodes clean and dry
- Practise arc control regularly
- Use HF start to reduce contamination risk
🛡️ Safety Tips
- Wear eye protection when grinding
- Avoid breathing grinding dust
- Use proper ventilation
- Turn off welder before adjustments
❓ FAQs
How often should I re-grind tungsten?
Every time it becomes contaminated or arc quality drops.
Can I reuse contaminated tungsten?
Yes — after proper grinding.
Why does my tungsten turn black?
Usually due to poor gas shielding or contamination.

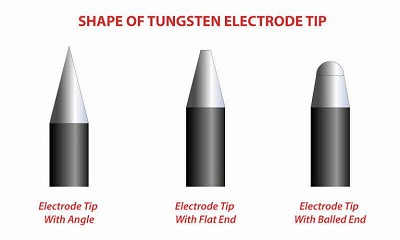

What is the ideal tungsten shape?
Sharp point for DC TIG welding.
Final Thoughts
Tungsten contamination is a normal part of learning TIG welding — but fixing it is quick and easy.
👉 Focus on:
- Proper tungsten preparation
- Clean materials
- Good gas coverage
- Steady torch control
Master these basics, and your weld quality will improve dramatically.
